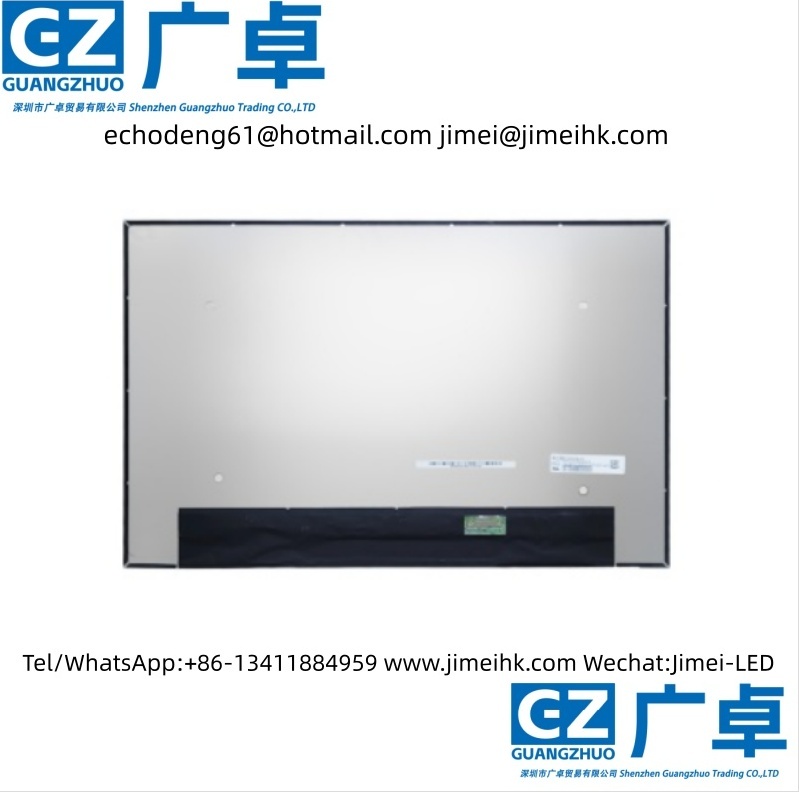

The NV160WUM-K41 (Product Code: BOE0B32) is a 16.0-inch a-Si TFT-LCD module launched by BOE. It is equipped with WLED backlight, including an LED driver for backlight driving and supports In-Cell Touch. The operating temperature range for this product is 0 to 50°C, the storage temperature range is -20 to 60°C, and it has a vibration resistance of 1.5G (14.7 m/s²).Panelook summarizes its key features as follows: sRGB, touchscreen, white LED backlight, built-in LED driver, flip-mounted terminals, matte surface, eDP 1.2 interface, and LBL. Based on these characteristics, Panelook recommends this model for applications such as laptops.

According to information available on Panelook, this product entered mass production in Q1 2023 and is currently in mass production. As of now, there are 2 spot supply entries and 3 supplier listings for this model on Panelook, with a subdued trading atmosphere.Panelook first established the parameters for this model on May 27, 2024

, and last updated them on September 18, 2024. According to the product specification document (Version Rev.0) released by BOE on November 25, 2022, the NV160WUM-K41 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width:height), and pixels arranged in a vertical stripe RGB configuration.The active area measures 344.68 mm (width) × 215.42 mm (height),

while the overall module dimensions are 349.68 mm (width) × 225.32 mm (height) × 5 mm (thickness). The surface treatment features a matte finish with hard coating (3H hardness), and the net weight of the product is 400g (maximum). The design is a slim module with the PCBA bent,

resulting in a thickness of ≤3.0mm.For backlighting, this product uses a side-edge (bottom) WLED light source with a 10S6P configuration. The backlight has a lifespan of 15,000 hours and includes an LED driver.

The NV160WUM-K41 utilizes an eDP (2 lanes) signal interface with a total of 40 pins, connected via terminals. The driving voltage for the screen is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz.
