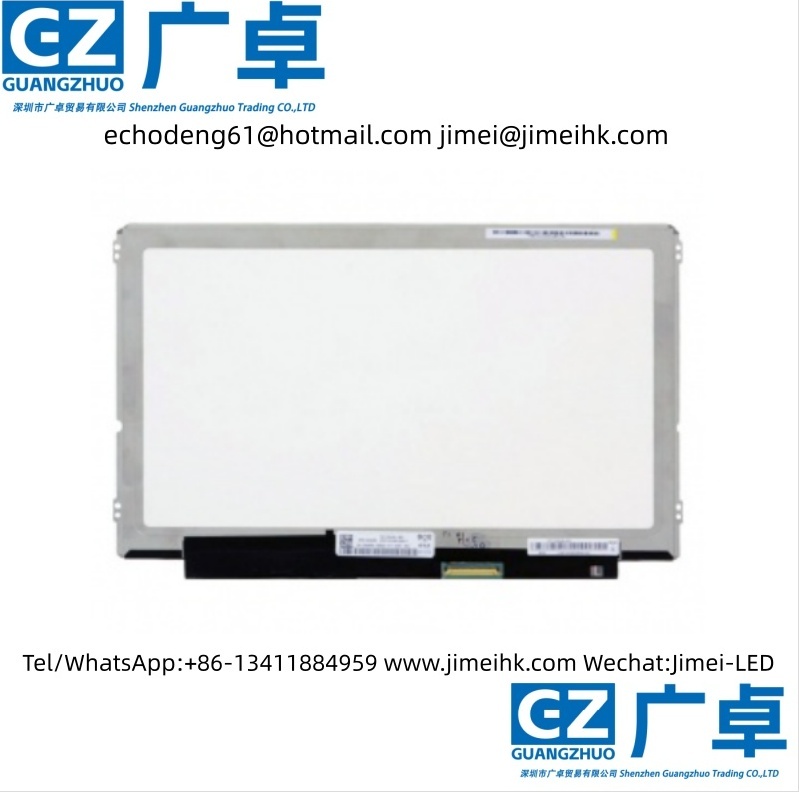

The NT116WHM-A22 (Product Code: BOE06E4 BOE0790 BOE073D) is an 11.6-inch LCD module launched by BOE Technology Group Co., Ltd. (BOE), utilizing a-Si TFT-LCD technology. It is equipped with a WLED backlight, including an LED driver for backlight driving, a projected capacitive touchscreen, and optical bonding. According to the product specification document (Version Rev.0) released by BOE on December 22, 2017, the NT116WHM-A22 has a display resolution of 1366(RGB)×768 (WXGA), an aspect ratio of 16:9 (width:height), and pixels arranged in RGB vertical stripes. Its active area measures 256.125×144 mm (width×height), while the overall dimensions are 278×171.5×3.95 mm (width×height×thickness). The surface treatment features hard coating (7H), and the net weight is 300g (Max.). The module adopts a slim design (with a straight PCBA and thickness ≤3.2mm).For backlighting, this product uses a side-edge WLED light source with an 8S3P configuration, offering a lifespan of 15,000 hours and includes an LED driver. The NT116WHM-A22 features an eDP (1 Lane) signal interface with a total of 40 pins, utilizing terminal connections, and a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
