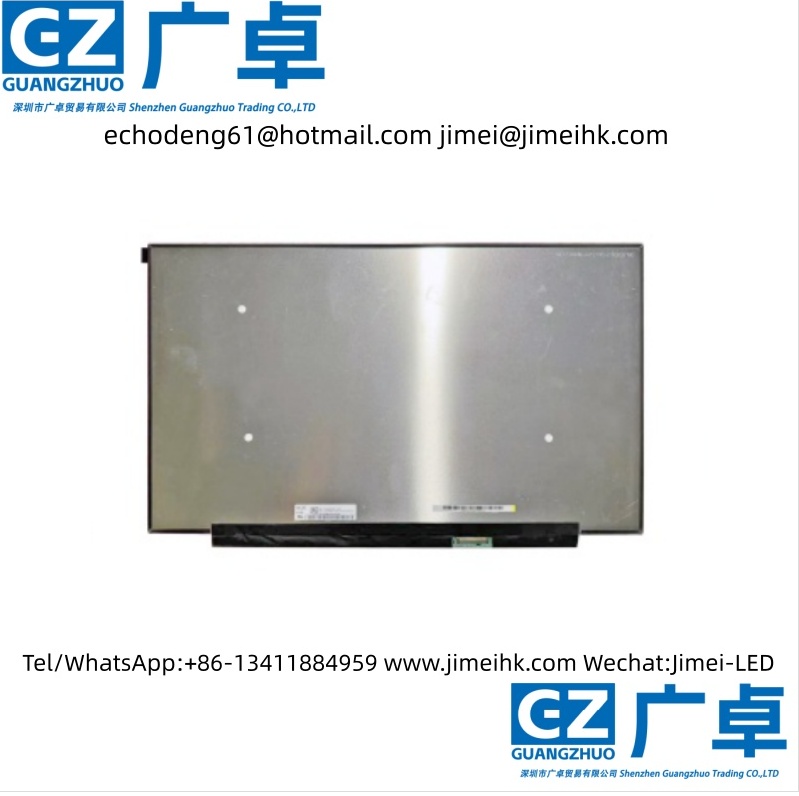

NE173QHM-NZ1 (Product Code: BOE09F9) is a 17.3-inch Oxide TFT-LCD module launched by BOE. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. The operating temperature range for this product is 0 °C to 50 °C, and the storage temperature range is -20 °C to 60 °C. Its vibration resistance is 1.5G (14.7 m/s²).Key features summarized by the panel database include: DCI-P3, sRGB, 240Hz refresh rate, white LED backlight with integrated LED driver, flip-mounted terminals, matte surface, support for G-Sync/FreeSync, PSR1, OD (Overdrive), G-Sync, and FreeSync. Based on these characteristics, the panel database recommends this model for applications such as notebooks, gaming devices, and similar products.
The NE173QHM-NZ1 features a display resolution of 2560 (RGB) × 1440 (Quad-HD) with an aspect ratio of 16:9 (width:height), and the pixels adopt an RGB vertical stripe arrangement. Its active area measures 381.85 mm (width) × 214.79 mm (height), while the overall dimensions are 389.89 mm (width) × 238.01 mm (height) × 3.5 mm (thickness). The surface treatment is matte with hard coating (3H), and the product net weight is 480g (Max.). The design is medium-thick (with a flat PCBA and thickness ranging from 3.4 to 4.0 mm).For backlighting, this product uses a bottom-edge type WLED light source in an 11S6P configuration, with a lifespan of 15,000 hours. It includes an LED driver. The NE173QHM-NZ1 employs an eDP (4 Lanes) signal interface with a total of 40 pins, connected via terminals, and the driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 240Hz.
