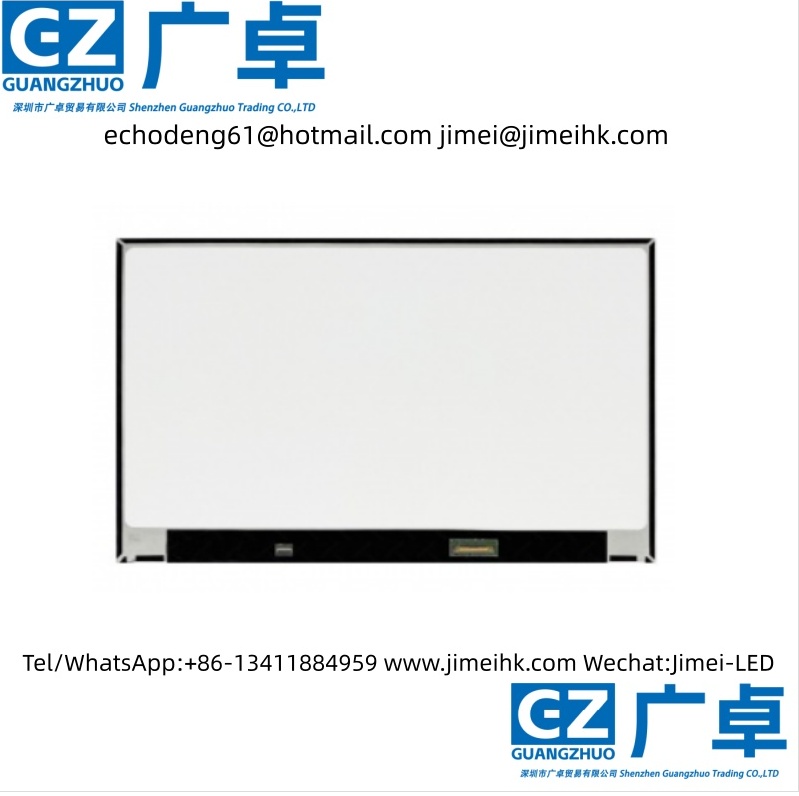

The NV133WUM-N64 (Product Code: BOE0B27) is a 13.3-inch a-Si TFT-LCD module launched by BOE. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. The operating temperature range for this product is 0 °C to 50 °C, with a storage temperature range of -20 °C to 60 °C. Its vibration resistance is rated at 1.5G (14.7 m/s²). Panelook summarizes its key features as follows: sRGB color gamut, white LED backlight, built-in LED driver, flip mounting terminals, eDP 1.4b interface, and PSR2 functionality.

The NV133WUM-N64 has a display resolution of 1920 (RGB) × 1200 (WUXGA), with an aspect ratio of 16:10 (width:height) and RGB vertical stripe pixel arrangement. Its display area measures 286.042 mm (width) × 178.776 mm (height), while the overall dimensions are 290.04 mm (width) × 187.78 mm (height) × 3.8 mm (thickness). The screen features a hard coating (3H) surface treatment, with a net weight of 137g (max) and a slim design (with PCBA bending, thickness ≤ 3.0mm).For backlighting, this product uses a side-lit light source (bottom) with 11S6P WLED illumination, offering a lifespan of 15,000 hours and including an LED driver. The NV133WUM-N64 utilizes an eDP (2 lanes) signal interface with a total of 30 pins, connected via terminals, and requires a driving voltage of 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz.
