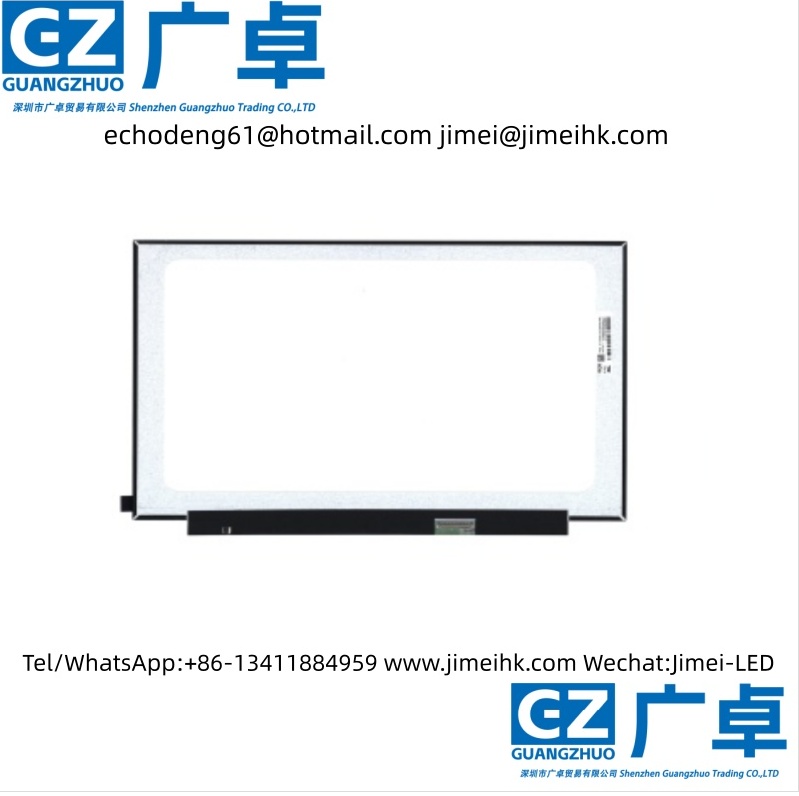

The NV161FHM-NX2 (Product Code: BOE09F1) is a 16.1-inch LCD module developed by BOE Technology Group Co., Ltd. (BOE), which utilizes a-Si TFT-LCD technology.

It incorporates a WLED backlight with an LED driver for backlight driving and does not support touch functionality. According to the product specification document (Version: Rev.P1) released by BOE on February 20, 2021, the NV161FHM-NX2 features a display resolution of 1920 (RGB) × 1080 (FHD),

an aspect ratio of 16:9 (width:height), and RGB vertical stripe pixel arrangement. The active display area measures 355.392 × 199.908 mm (width × height),

while the overall module dimensions are 361.9 × 222.59 mm (width × height) × 3.2 mm (thickness). The surface treatment includes an anti-glare matte finish with hard coating (3H hardness), and the net weight of the module is 385g (maximum).

Its design is slim-type, with a straight PCBA and a thickness of ≤3.2 mm.For backlighting, this module employs a side-edge WLED light source in a 10S6P configuration, featuring a lifespan of 15,000 hours and includes an LED driver.

The NV161FHM-NX2 uses an eDP (4 Lanes) signal interface with a total of 40 pins connected via terminals, and the driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 144Hz.
