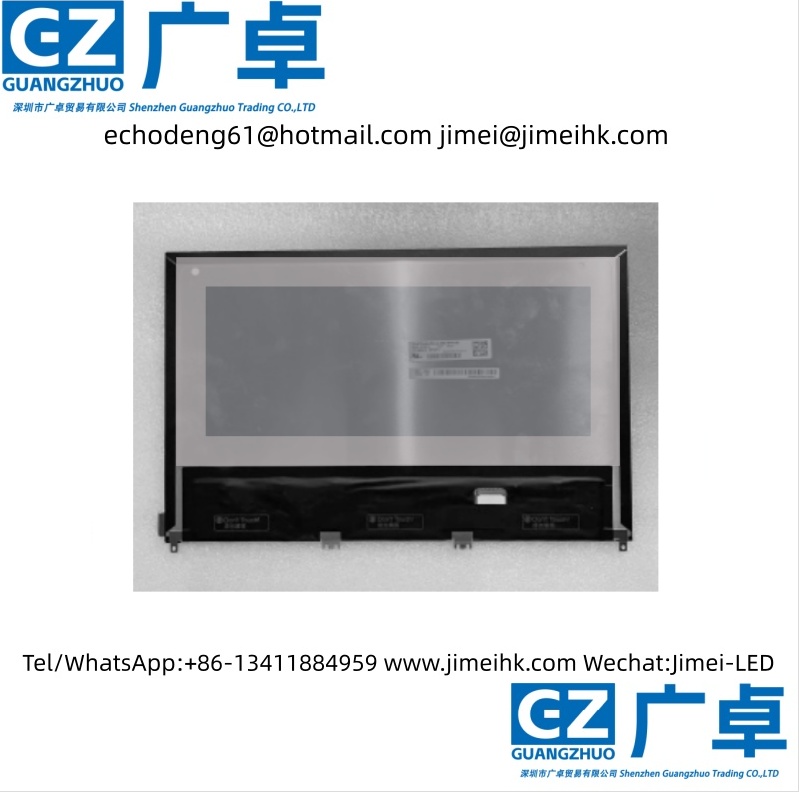

The LP140WU3-SPA1 display boasts a resolution of 1920 (RGB) × 1200 (WUXGA) with an aspect ratio of 16:10 (width:height), and its pixels are arranged in RGB vertical stripes.

、 The active area measures 301.594 mm (width) × 188.496 mm (height), while the overall dimensions are 307.29 mm (width) × 199.25 mm (height) × 5 mm (thickness).

It features a slim design with a folded PCBA (thickness ≤ 3.0 mm). The backlight utilizes WLED edge-lit side lighting with a lifespan of 15,000 hours and includes an LED driver.

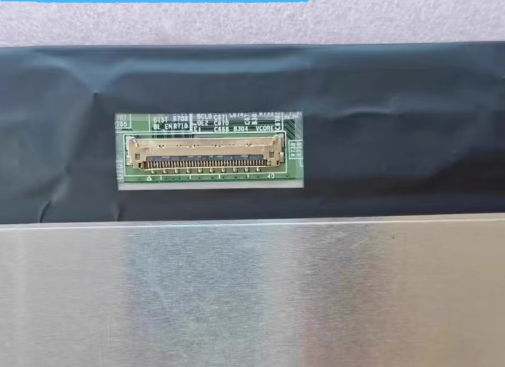

The display adopts an eDP (2 Lanes) signal interface with a connector type and operates at a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
