The NV125FHM-N85 (Product Code: BOE0882) is a 12.5-inch a-Si TFT-LCD module launched by BOE. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. This module operates at temperatures ranging from 0 to 50°C, can be stored at temperatures from -20 to 60°C, and has a vibration resistance of 1.5G (14.7 m/s²).

White light LED backlight, including LED driver, inverted terminals, matte surface. Based on its features, the panel library recommends this model for applications such as notebooks.

The NV125FHM-N85 features a display resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16:9 (width:height), and the pixels are arranged in RGB vertical stripes.

Its active area measures 276.48 (width) × 155.52 (height) mm, while the overall dimensions are 282.4 (width) × 168.72 (height) × 4.2 (thickness) mm. The surface treatment is matte, and the product net weight is 172g (Max.).

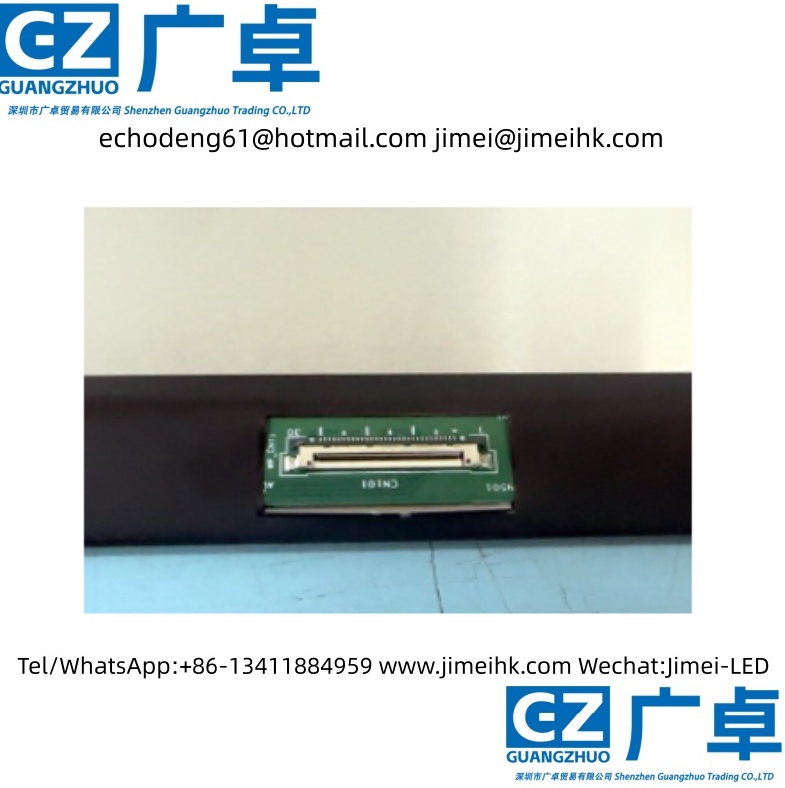

The design is a slim screen (with PCBA bent, thickness ≤ 3.0mm).For backlighting, this product uses a 9S3P WLED edge-lit light source with a lifespan of 15K hours, including an LED driver. The NV125FHM-N85 adopts an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and the driving voltage is 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
