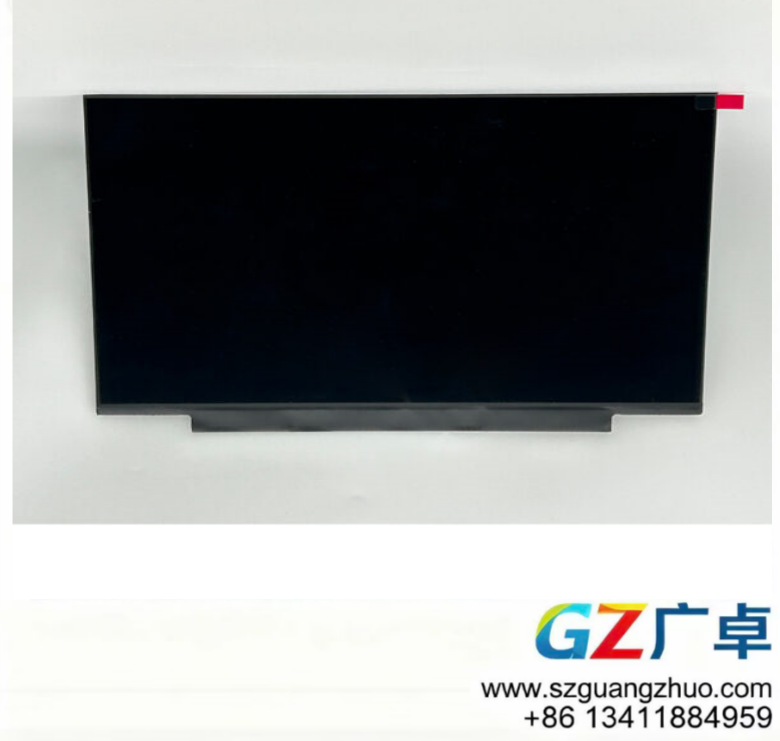

NE133FHM-N65 (Product Code: BOE090C) is a 13.3-inch LCD module launched by BOE Technology Group Co., Ltd. (BOE), utilizing Oxide TFT-LCD technology.

It is equipped with a WLED backlight, has no backlight driver, and does not support touch functionality. According to the product specification document (Version: Rev.P0) released by BOE on March 16, 2020, the NE133FHM-N65 features a display resolution of 1920(RGB)×1080 (FHD),

an aspect ratio of 16:9 (width:height), and employs an RGB vertical stripe pixel arrangement. The active area measures 293.76×165.24 mm (width × height), while the overall module dimensions are 298.76×185.24×2.48 mm (width × height × thickness).

The surface treatment includes Hard Coating (3H), and the net weight of the module is 179g (Max.). Its appearance is characterized by a slim design (with a straight PCBA and thickness ≤3.2mm). The backlight unit uses a side-entry light source with 9S6P WLEDs,

offering a lifespan of 15,000 hours and does not include a backlight driver. The NE133FHM-N65 utilizes an eDP (2 Lanes) signal interface with a total of 70 pins,

employing terminal connections, and requires a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate (Fv) is 60Hz.
