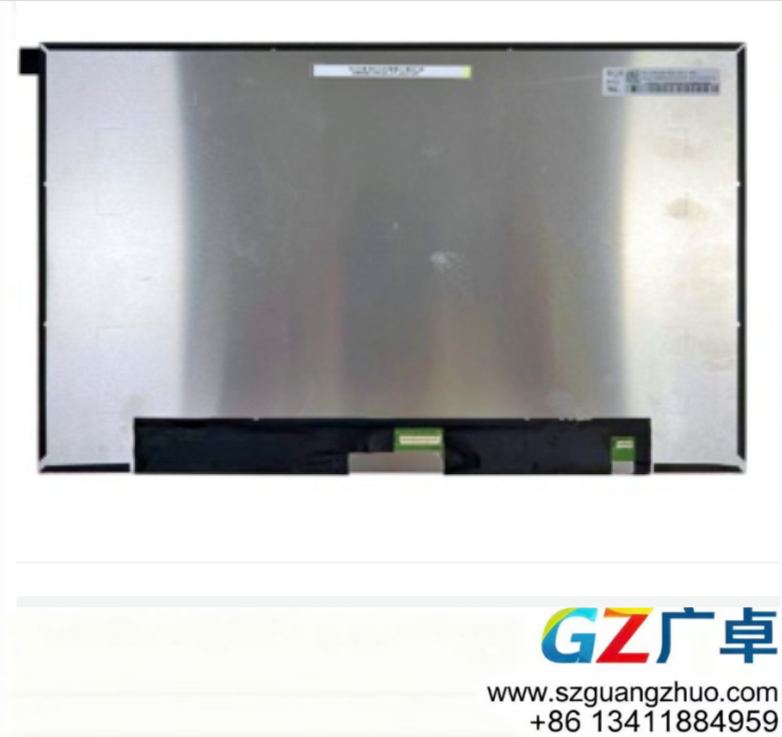

The NV133WUM-N61 (Product Code: BOE0964) is a 13.3-inch a-Si TFT-LCD module launched by BOE. It is equipped with WLED backlight, including an LED driver for backlight driving, and does not support touch functionality. The operating temperature range for this product is 0 °C to 50 °C, w

ith a storage temperature range of -20 °C to 60 °C. It can withstand vibrations of up to 1.5G (14.7 m/s²).Key features summarized by the panel database include: sRGB color gamut, white LED backlight with an integrated LED driver, flip mounting terminals,

a matte surface, and eDP 1.3 interface. Based on these characteristics, the panel database recommends this model for applications such as laptops.

The NV133WUM-N61 features a display resolution of 1920 (RGB) × 1200 (WUXGA) with an aspect ratio of 16:10 (width:height), and the pixels are arranged in RGB vertical stripes.

The active area measures 286.042 mm (width) × 178.776 mm (height), while the overall dimensions are 291.04 mm (width) × 187.38 mm (height) × 4.5 mm (thickness). The surface treatment includes an anti-glare matte finish (Haze 25%) and hard coating (3H hardness).

The product has a net weight of 210g (Max.) and adopts a slim design (with PCBA bending, thickness ≤ 3.0mm).For backlighting, this product utilizes a side-lit WLED light source (9S6P configuration, bottom-mounted) with a lifespan of 15,000 hours,

including an LED driver. The NV133WUM-N61 employs an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and requires a driving voltage of 3.3V (Typ.). The typical vertical refresh rate (Fv) is 60Hz.
