The N160GLE-GT1, launched by Innolux, is a 16.0-inch LCD module utilizing LTPS TFT-LCD technology. It is equipped with a WLED backlight, including an LED driver for backlight driving, and does not support touch functionality.

Panelook summarizes its typical features as follows: 165Hz refresh rate, white LED backlight with an integrated LED driver, 350 nits brightness, 100% sRGB color gamut, 2.6/4.6t response time, and eDP 1.4 interface.

Its operating temperature ranges from 0 to 50°C, storage temperature from -20 to 60°C, and it can withstand vibrations of up to 1.5G (14.7 m/s²). This model is suitable for use in laptops.

The N160GLE-GT1 features a display resolution of 2560 (RGB) × 1600 (WQXGA), with an aspect ratio of 16:10 (width:height) and RGB vertical stripe pixel arrangement. Its display area measures 344.678 × 215.424 mm (width × height),

with a hard coating (3H) surface treatment and a slim profile design (PCBA bent, thickness ≤ 3.0mm). For backlighting, this product uses edge-lit WLED illumination with a lifespan of 15,000 hours, including an LED driver.

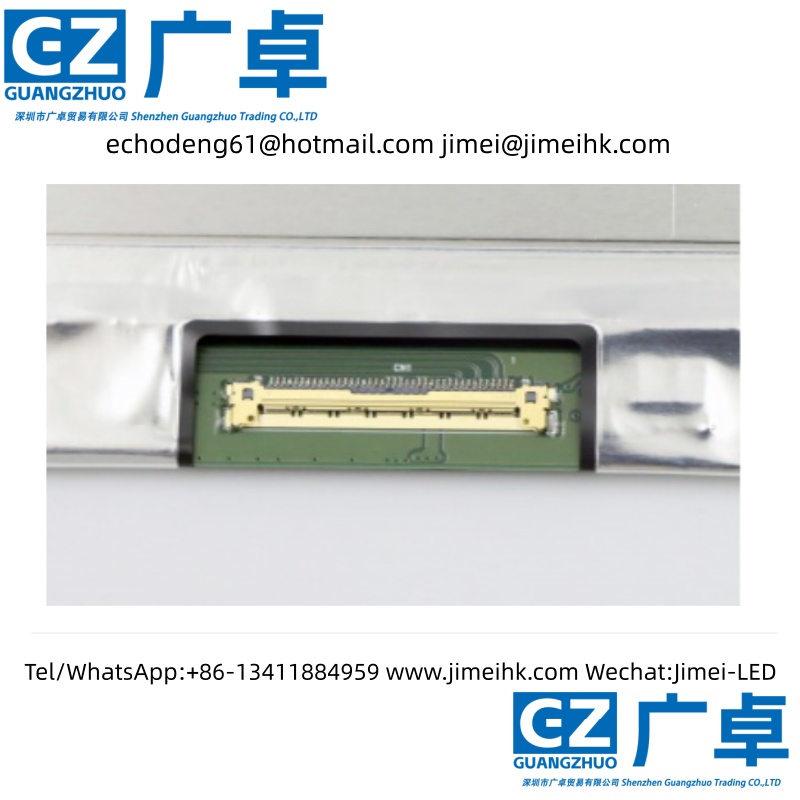

The N160GLE-GT1 adopts an eDP (4 lanes) signal interface with terminal connectors and a driving voltage of 3.3V (typical). Its typical vertical refresh rate (Fv) is 165Hz.
