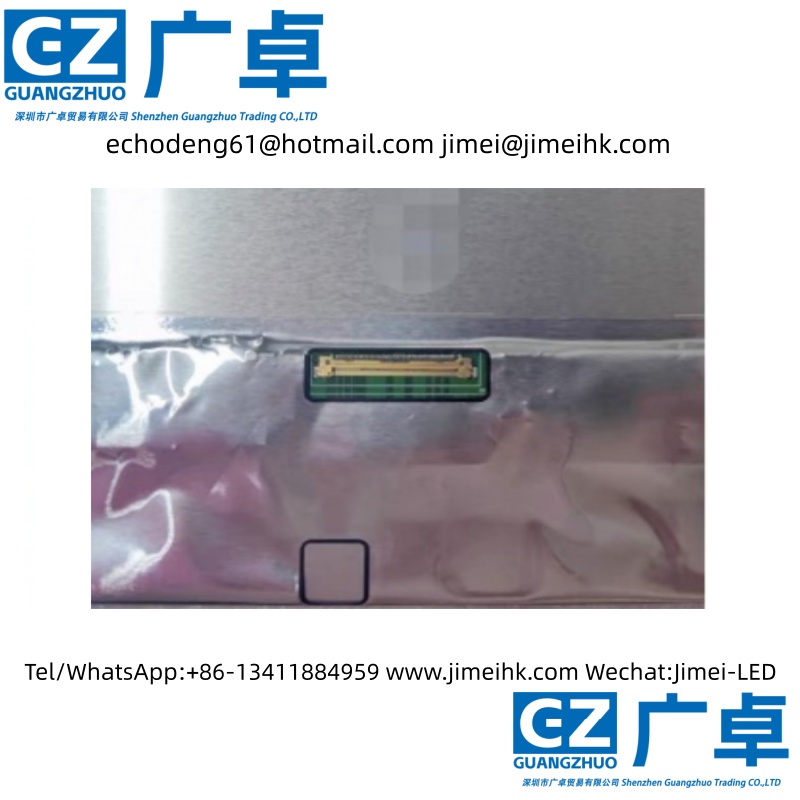

The B160QAN02.C (Product Code: AUOCBAC) is a 16.0-inch LCD module developed by AU Optronics Corp. (AUO), utilizing LTPS TFT-LCD technology.

It incorporates a Mini LED backlight with an integrated LED driver for backlight driving and does not support touch functionality.

According to the product specification document (Version: HW0A_Ver0.5) released by AUO on December 28, 2023, the B160QAN02.C features a display resolution of 2560 (RGB) × 1600 (WQXGA), with an aspect ratio of 16:10 (width:height) and RGB vertical stripe pixel arrangement.

The active area measures 344.678 × 215.424 mm (width × height), while the overall dimensions are 349.68 × 223.92 mm (width × height) × 5 mm (thickness).

The surface treatment includes a glossy finish (Haze 0%) with hard coating (3H hardness). The module has a net weight of 435g (maximum) and adopts a slim design with PCBA bending (thickness ≤ 3.0mm).For backlighting,

this product employs a direct-type Mini LED light source with a lifespan of 15,000 hours and includes an LED driver. The B160QAN02.C uses an eDP (4 lanes) signal interface with a total of 40 pins, connected via terminals, and requires a driving voltage of 3.3V (typical). Its typical vertical refresh rate (Fv) is 90Hz.
