N140HCG-EQ1 (Product Code: CMN1408) is a 14.0-inch LCD module developed by Innolux Corporation, utilizing a-Si TFT-LCD technology. It incorporates a WLED backlight with an LED driver for backlight driving and does not support touch functionality.

According to the product specification document (Version: Rev.C1_Ver3.1) released by Innolux on January 2, 2020, the N140HCG-EQ1 features a display resolution of 1920(RGB)×1080 (FHD) with an aspect ratio of 16:9 (width:height). The pixel arrangement follows a vertical stripe RGB pattern.

The active display area measures 309.31×173.99 mm (width×height), while the overall module dimensions are 314.31×191.09 mm (width×height) with a thickness of 2.6 mm.

The surface treatment includes an anti-glare matte finish with hard coating (3H hardness). The net weight of the module is 206.6 g (typical) / 220 g (maximum), and it adopts a slim design with a flat PCBA (thickness ≤ 3.2 mm).For backlighting,

this product uses a edge-lit light source with 12S6P WLEDs, offering a lifespan of 15,000 hours and includes an LED driver.

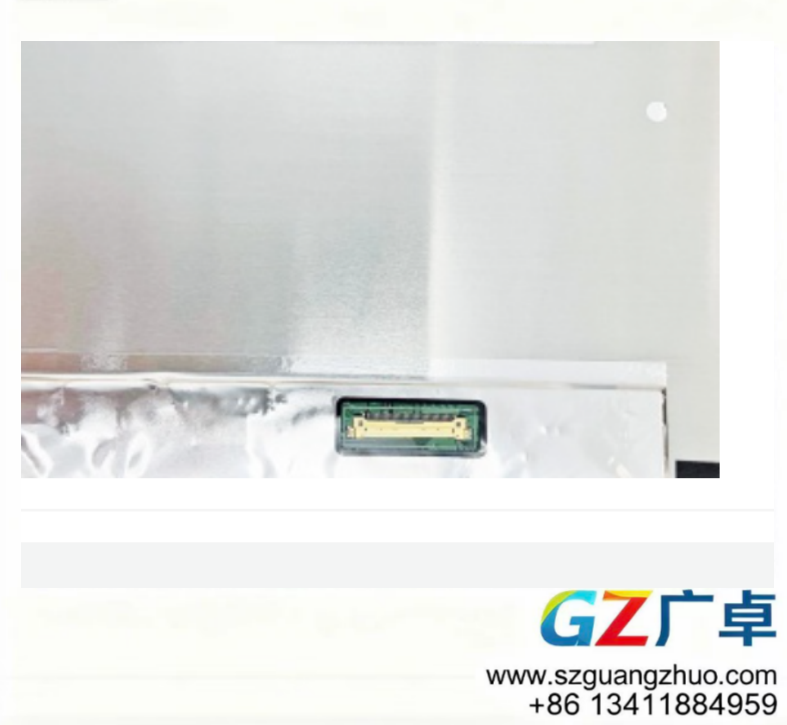

The N140HCG-EQ1 employs an eDP (2 Lanes) signal interface with a total of 30 pins, connected via terminals, and requires a driving voltage of 3.3V (typical). The typical vertical refresh rate (Fv) is 60Hz.

Its operating temperature is 0~50°C, storage temperature is -20~60°C, and vibration resistance is 1.5G (14.7 m/s²). Featuring sRGB color gamut, white LED backlight, integrated LED driver, inverted terminals, matte surface, eDP 1.2 interface, Lenovo P/N: SD10W69519, and LED DC dimming technology, this model is recommended for laptops.
