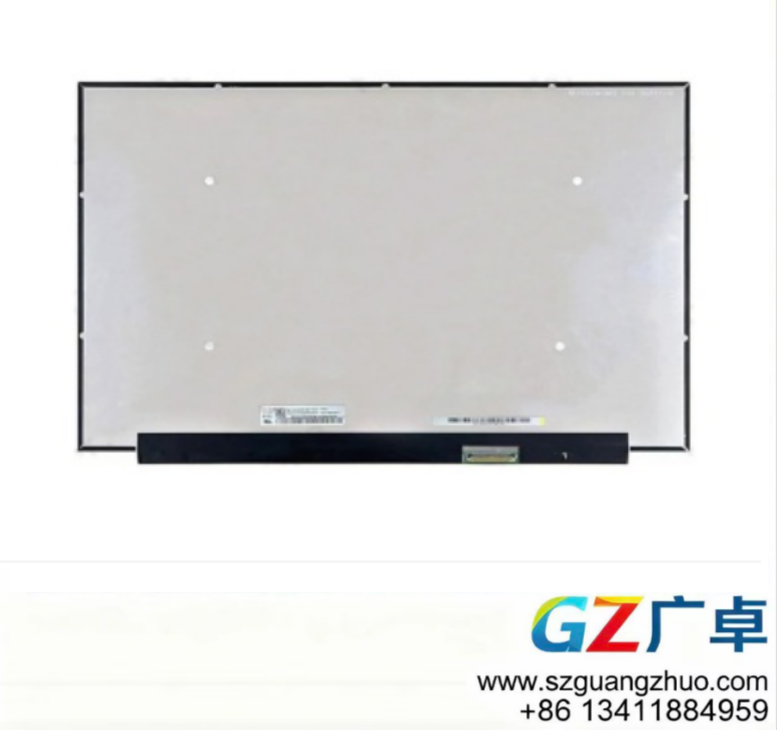

BOE’s NE160QDM-NZ4 (Product Code: BOE0B04) is a 16.0-inch LCD module utilizing Oxide TFT-LCD technology. It incorporates a WLED backlight with an LED driver for backlight driving and does not support touch functionality. Panelook summarizes its key features as follows: DCI-P3, sRGB, 240Hz, white LED backlight, built-in LED driver, inverted terminal mounting,
matte surface, G-Sync/FreeSync compatibility, eDP 1.4 interface, LBL, adjustable backlight brightness via DC mode, PSR1, OD, G-Sync, FreeSync, and Adaptive Sync. It operates within a temperature range of 0 °C to 50 °C, can be stored at temperatures ranging from -20 °C to 60 °C, and withstands vibration levels of up to 1.5G (14.7 m/s²). This model is suitable for applications such as laptops and gaming.
According to Panelook’s information, the product entered mass production in Q1 2023 and is currently in mass production. As of now, Panelok lists six spot stock entries and five supplier entries for the NE160QDM-NZ4, indicating a highly active trading environment. Panelook first established the parameters for this model on April 11, 2023,
and last updated them on November 28, 2024.Based on BOE’s product specification document (Version Rev.0) released on December 5, 2022, the NE160QDM-NZ4 has a display resolution of 2560 × 1600 (WQXGA), an aspect ratio of 16:10 (width:height),
and pixel arrangement in RGB vertical stripes. The active area measures 344.678 mm × 215.424 mm (width × height), while the overall module dimensions are 349.68 mm (width) × 234.42 mm (height) × 2.2 mm (thickness).
The surface treatment is matte with hard coating (3H), and the net weight is 370 g (maximum).
4The appearance is characterized as a slim design (with a straight PCBA and thickness ≤ 3.2 mm).The backlight system uses a side-lit WLED configuration (bottom-edge lighting) with an 11S8P arrangement and includes an LED driver. The backlight has a lifespan of 15,000 hours.
The NE160QDM-NZ4 employs an eDP (4 lanes) signal interface with a total of 40 pins connected via terminals. The driving voltage is 3.3 V (typical). The typical vertical refresh rate (Fv) is 240 Hz.
