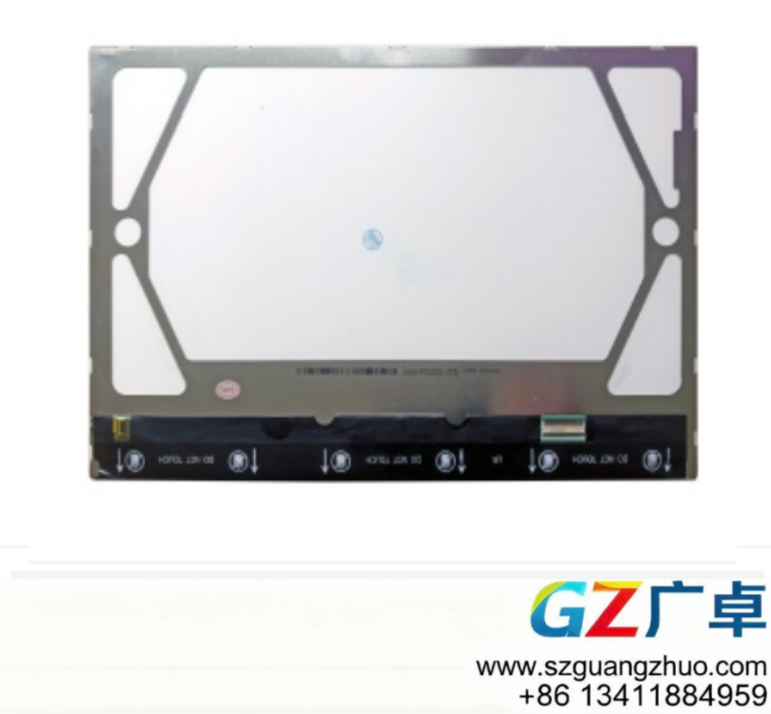

The TV101WXM-NS0 is a 10.1-inch a-Si TFT-LCD module launched by BOE. It is equipped with a WLED backlight, has no backlight driver, and does not support touch functionality.

The operating temperature range for this product is -20 to 65°C, and the storage temperature range is -40 to 80°C. Panelook summarizes its key features as follows:

white LED backlight and flip-mounted terminals. Based on these characteristics, According to information available on Panelook, this product entered mass production in Q3 2016 and is currently listed as discontinued.

As of now, there are 4 stock availability records and 6 supplier listings for this model on Panelook, indicating active trading activity.

Panelook first established the parameters for this model on September 25, 2018, and last updated them on February 16, 2024.According to the product specification document (Version Rev.P0) released by BOE on April 13, 2016, the TV101WXM-NS0 has a display resolution of 1280(RGB)×800 (WXGA),

an aspect ratio of 16:10 (width:height), and uses RGB vertical stripe pixel arrangement. The active area measures 216.96 mm (width) × 135.6 mm (height),

while the outer dimensions are 228.211 mm (width) × 148.86 mm (height) × 4.59 mm (thickness). The surface treatment includes hard coating (2H) and anti-glare treatment. The net weight of the product is typically 130g.For backlighting,

this module uses a side-edge WLED light source with 6 strings and does not include a backlight driver.

The TV101WXM-NS0 adopts an LVDS (1 channel, 8-bit) signal interface with a total of 45 pins, connected via terminals. The typical driving voltage is 3.3V. The typical vertical refresh rate (Fv) is 60Hz.
