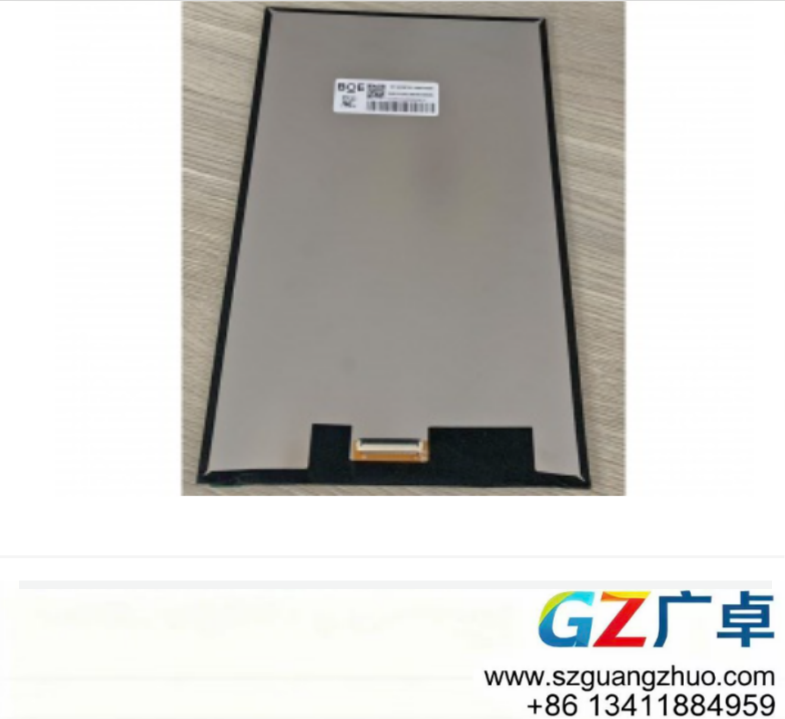

TV101WX1-M00 is a 10.1-inch a-Si TFT-LCD module launched by BOE. It is equipped with a WLED backlight, without backlight driver or touch function.

The operating temperature range is -10 to 50°C, and the storage temperature range is -20 to 60°C. Panelook summarizes its typical features as: portrait mode, white LED backlight, and matte surface.

Based on these characteristics, Panelook recommends this model for applications such as tablet computers. This product is bonded with the HX8252-A02 driver IC. According to Panelook’s information,

mass production of this product began in Q4 2025, and its current production status is in mass production.

As of now, there are 0 stock listings and 1 supplier information for this model on Panelook, indicating a quiet trading atmosphere.

Panelook first established the parameters for this model on November 3, 2025. According to the product specification document (version Rev.00) released by BOE on September 4, 2025, TV101WX1-M00 has a display resolution of 800(RGB)×1280 (WXGA), an aspect ratio of 10:16 (width:height),

and pixels arranged in RGB vertical stripes. The active area measures 135.36 mm (width) × 216.576 mm (height), and the outline dimensions are 143 mm (width) × 228.6 mm (height) × 2.8 mm (thickness),

with a matte surface treatment. For backlight, this product uses edge-lit WLEDs with a lifespan of 20,000 hours and does not include a backlight driver.

TV101WX1-M00 adopts a MIPI (4 data lanes) signal interface with a total of 40 pins, using connector, and a driving voltage of 1.8/3.3V (Typ.)(IOVCC/VDD). Its typical vertical refresh rate (Fv) is 60Hz.
