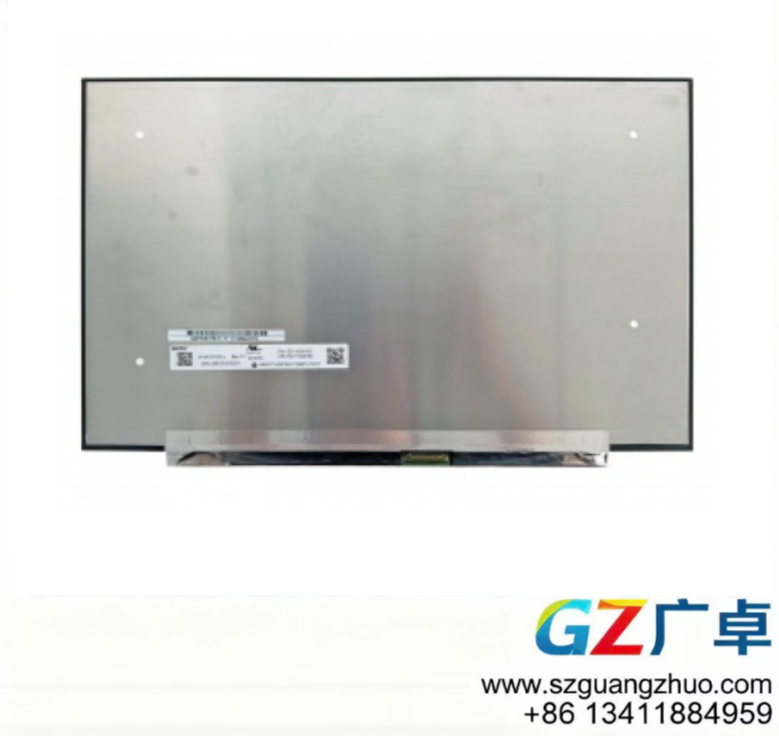

The N140JCA-ELL (Product Code: CMN1457) is a 14.0-inch a-Si TFT-LCD module launched by Innolux.
It is equipped with a WLED backlight including an LED driver for backlight driving and does not support touch.
This product has an operating temperature range of 0 to 50°C, a storage temperature range of -20 to 60°C, and vibration resistance of 1.5G (14.7 m/s²).
Key features summarized by the panel database include: white LED backlight with LED driver, flip-mounted terminals, matte surface, AMD FreeSync, eDP 1.2, and LED dimming control mode: DC dimming, FreeSync. Based on these characteristics,
the database recommends this model for applications such as laptops. According to the database, this product entered mass production in Q1 2022 and is currently in mass production.
As of now, there are 10 stock listings and 9 supplier listings for this model on the database, indicating a highly active trading environment.
The parameters for this model were first established in the database on May 9, 2023, and last updated on July 24, 2024. According to Innolux’s product specification document version 2.0 released on December 6, 2021,
the N140JCA-ELL has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16:10 (width:height), and pixels arranged in RGB vertical stripes.
The active area measures 301.594 mm (width) × 188.496 mm (height), and the overall dimensions are 306.6 mm (width) × 206 mm (height) × 3 mm (thickness).
The surface treatment is matte with hard coating (3H), and the net weight is 290 g (typical) / 300 g (maximum).
The appearance is a slim design (PCBA flat, thickness ≤ 3.2mm). For the backlight, this product uses a side-edge WLED light source with a 9S6P configuration, a lifespan of 15,000 hours,
and includes an LED driver. The N140JCA-ELL uses an eDP (2 lanes) signal interface with 30 pins in total, connected via terminals, and a driving voltage of 3.3V (typical).
The typical vertical refresh rate (Fv) is 60Hz. The production status indicated in the database is for reference only and should not be used as a basis for user decision-making.
