The NE156QHM-NY6 (Product Code: BOE0A9F) is a 15.6 inch diagonal Oxide TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It’s general features are summarized by Panelook in the following: sRGB, 120Hz, WLED Backlight, With LED Driver, Reverse I/F, Matte, G-Sync / FreeSync , eDP1.4b, PSR2, Freesync, Gsync. Based on its features, Panelook recommend that this model be applied to Laptop, Gaming etc. According to the information stored in Panelook this model mass production on Q1, 2022, Now this model is in production
NE156QHM-NY6 FHD 120HZ IPS 窄边LED 液晶显示器屏幕
NE156QHM-NY6
- 面板品牌
- 京东方 (BOE)
- 面板型号
- NE156QHM-NY6
- 面板尺寸
- 15.6英寸
- 面板类型
- Oxide TFT-LCD, 液晶模组
- 分辨率
- 2560(RGB)×1440, Quad-HD, 188PPI
- 像素布局
- RGB垂直条状
- 显示区域
- 344.22(W)×193.62(H) mm
- 外观尺寸
- 350.66(W)×205.25(H)×4.6(D) mm
- 可视区域
- –
- 表面处理
- 雾面，Hard coating (3H)
- 显示亮度
- 300 cd/m² (Typ.)
- 对 比 度
- 1200:1 (Typ.) (透射)
- 推荐视角
- 全视角
- 响应时间
- 9 (Typ.)(Tr+Td) ms
- 可视角度
- 85/85/85/85 (Typ.)(CR≥10)
- 显示模式
- ADS，常黑显示，透射式
- 支持颜色
- 16.7M , 100% sRGB
- 光源类型
- WLED [10S5P] , 15K小时 , 含LED驱动器
- 外观样式
- 薄屏 (PCBA弯折, 厚度≤3.0mm)
- 帧频率
- 120Hz
- 触摸技术
- 无触摸
- 接口类型

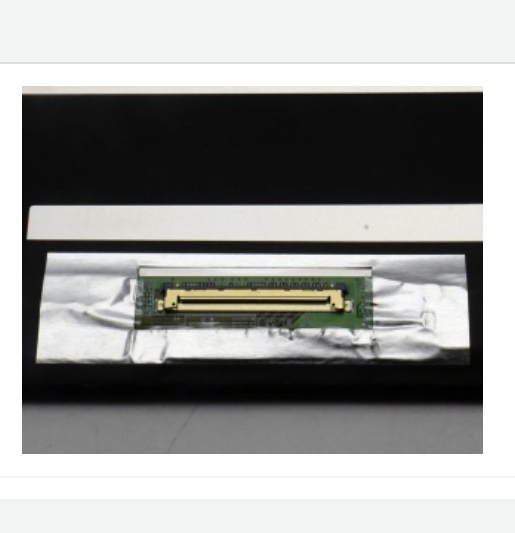

- 40 pins eDP (4 Lanes) , eDP1.4b , HBR2 (5.4G/lane) , 端子
- 电压供应
- 3.3V (Typ.)
- 应用环境
- 工作温度: 0 ~ 50 °C ; 存储温度: -20 ~ 60 °C
