The NE160QDM-NZ3 (Product Code: BOE0B12 BOE0B8B BOE0BBE) is a 16.0 inch diagonal Oxide TFT-LCD display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), with an integral WLED backlight system, With LED Driver , without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C , and the maximal vibration level of 1.5G (14.7 m/s²). It’s general features are summarized by Panelook in the following: sRGB, 240Hz, WLED Backlight, With LED Driver, Reverse I/F, Matte, G-Sync / FreeSync , eDP1.4b, Free Sync, G-Sync, LBL, Adjust backlight brightness with DC mode. Based on its features, Panelook recommend that this model be applied to Laptop, Gaming etc.
NV160QDM-NZ3 QHD 240HZ IPS 窄边LED 液晶显示器屏幕

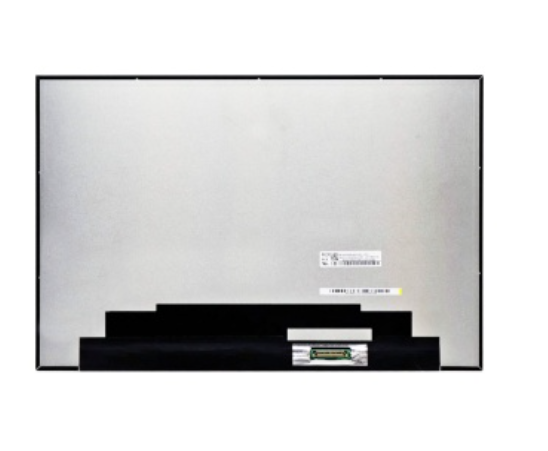

NE160QDM-NZ3
面板品牌 :京东方 (BOE)
面板型号 :NE160QDM-NZ3
面板尺寸 :16.0英寸
面板类型 :Oxide TFT-LCD, 液晶模组
分辨率 :2560(RGB)×1600, WQXGA, 188PPI
像素布局 :RGB垂直条状
显示区域 :344.678(W)×215.424(H) mm
外观尺寸 :349.68(W)×224.42(H)×4.6(D) mm
表面处理 :雾面，Hard coating (3H)
面板亮度 :500 cd/m² (Typ.)
对比度 ：1200:1 (Typ.) (TM)
可视角度 ：85/85/85/85 (Typ.)(CR≥10)
工作模式 :ADS，常黑显示，透射式
视角方向 :全视角
反应时间 :9 (Typ.)(Tr+Td) ms
显示颜色 :16.7M , 100% sRGB
光源类型 :11S8P WLED , 15K小时 , 含LED驱动器
工作频率 :240Hz
触摸屏 :无触摸
外观样式 :薄屏 (PCBA弯折, 厚度≤3.0mm)
信号接口 ：eDP (4 Lanes) , eDP1.4b , HBR3 (8.1G/lane) , 40 pins , 端子
驱屏电压 :3.3V (Typ.)
工作环境 ：工作: 0 ~ 50 °C ; 存储: -20 ~ 60 °C
