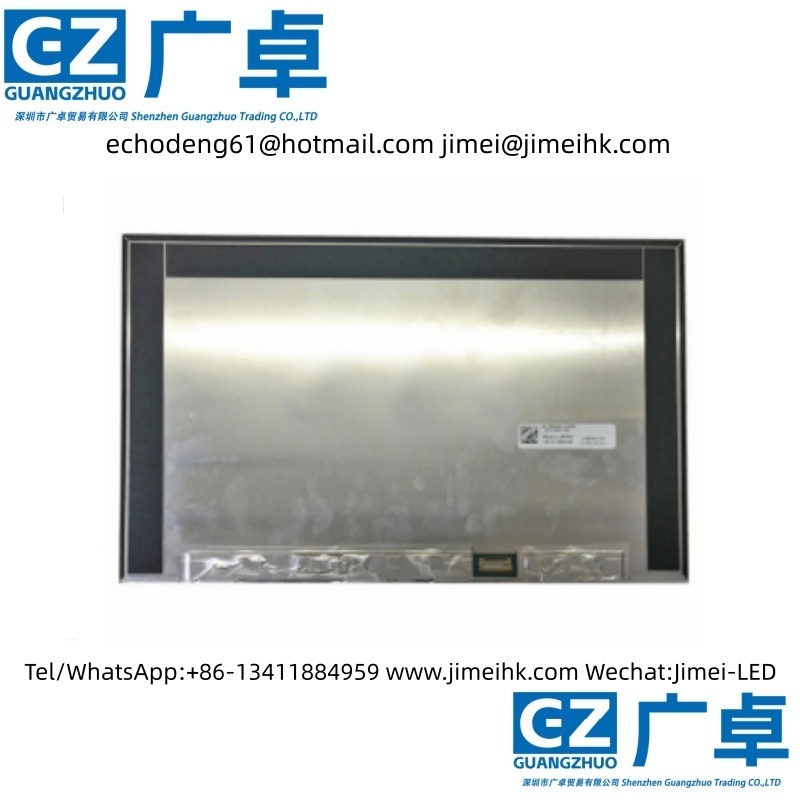

LQ140M1JW33 (alias: LQ0DASC778) is a 14.0-inch LCD module product launched by Sharp Corporation in Japan, which uses Oxide TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. LQ140M1JW33 has a display resolution of 1920 (RGB) × 1080 (FHD), an aspect ratio of 16:9 (width: height), and pixels arranged in a vertical RGB stripe pattern. Its display area size is 309.312 × 173.988 (width × height) mm, with a matte surface treatment and a thin screen appearance style (PCBA bent, thickness ≤ 3.0mm). In terms of backlight, this product adopts a WLED side entry light source with a lifespan of 15K hours and includes an LED driver. LQ140M1JW33 adopts eDP (2 Lanes) signal interface and terminal connection. Its typical vertical refresh rate Fv is 60Hz
LQ140M1JW33 FHD IPS窄边 LED 液晶显示器屏幕
LQ140M1JW33
面板品牌：夏普 (Sharp)
面板型号：LQ140M1JW33
面板尺寸14.0英寸
面板类型：Oxide TFT-LCD, 液晶模组
分辨率：1920(RGB)×1080, FHD, 157PPI
像素布局：RGB垂直条状
显示区域：309.312(W)×173.988(H) mm
表面处理：雾面
对 比 度：1500 : 1 (Typ.) [透射]
最佳角度：全视角
光学模式：New Mode2，常黑显示，透射式
可视角度：89/89/89/89 (Min.)(CR≥10) 左 / 右 / 上 / 下
响应速度：30 (Typ.)(Tr+Td) ms
颜色数量：16.7M
背光类型:WLED , 15K小时 , 含LED驱动器
外观样式:薄屏 (PCBA弯折, 厚度≤3.0mm)
适用于:笔记本
刷新频率:60Hz
最大额定:存储温度: -25 ~ 60 °C 工作温度: 0 ~ 50 °C
