The LQ140M1JW39 (Alias: LQ0DASD440) is a 14.0-inch LCD module product developed by Sharp Corporation (Sharp) in Japan, utilizing Oxide TFT-LCD technology. It features a WLED backlight with an integrated LED driver backlight, but lacks touch functionality. The LQ140M1JW39 has a display resolution of 1920(RGB)×1080 (FHD), a 16:9 (width:height) aspect ratio, and employs RGB vertical stripe pixel arrangement. Its active display area measures 309.312×173.988 (width×height) mm, with a matte surface finish and a thin-panel design (PCBA bending, thickness ≤3.0mm). The backlight utilizes a side-illuminated WLED light source, with a lifespan of 15K hours and includes an LED driver. The LQ140M1JW39 adopts an eDP (2 Lanes) signal interface and uses terminal connections. Its typical vertical refresh rate (Fv) is 60Hz

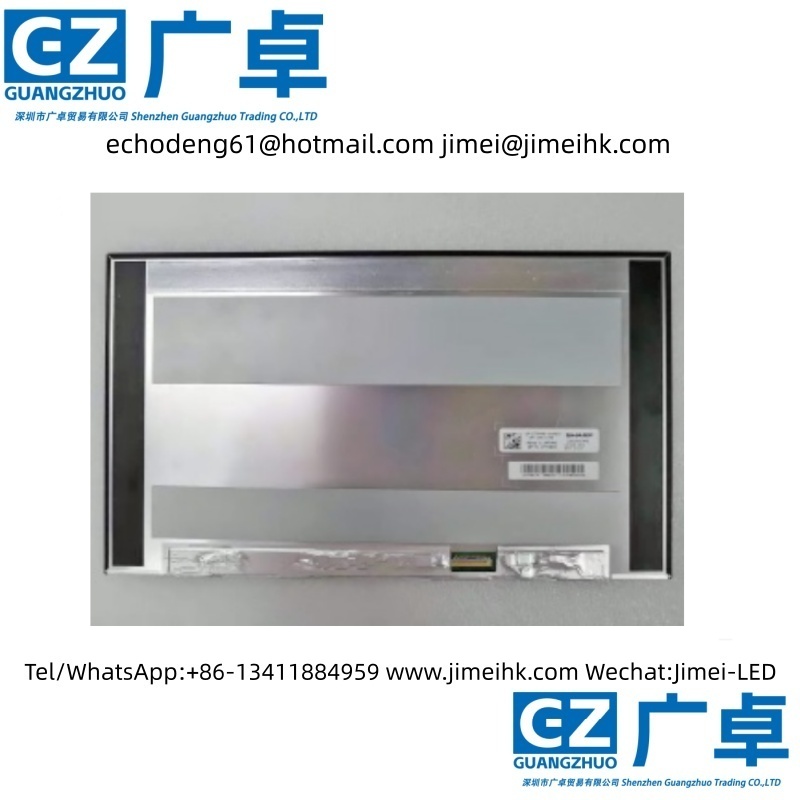

LQ140M1JW39 FHD IPS窄边 LED 液晶显示器屏幕
LQ140M1JW39
面板品牌：夏普 (Sharp)
面板型号：LQ140M1JW39
面板尺寸：14.0英寸
面板类型：Oxide TFT-LCD, 液晶模组
分辨率：1920(RGB)×1080, FHD, 157PPI
像素布局：RGB垂直条状
显示区域：309.312(W)×173.988(H) mm
视角方向：全视角
可视角度：89/89/89/89 (Min.)(CR≥10) 左/右/上/下
支持颜色：16.7M
物理形状：薄屏 (PCBA弯折, 厚度≤3.0mm)
帧频率：60Hz
表面处理：雾面
对比度：1500:1 (Typ.) (透射)
响应时间：30 (Typ.)(Tr+Td) ms
操作模式：New Mode2，常黑显示，透射式
光源类型：WLED , 15K小时 , 含LED驱动器
适用于：笔记本
触摸面板：无触摸
接口类型： eDP (2 Lanes) , 端子
应用环境 :工作温度: 0 ~ 50 °C ; 存储温度: -25 ~ 60 °C
