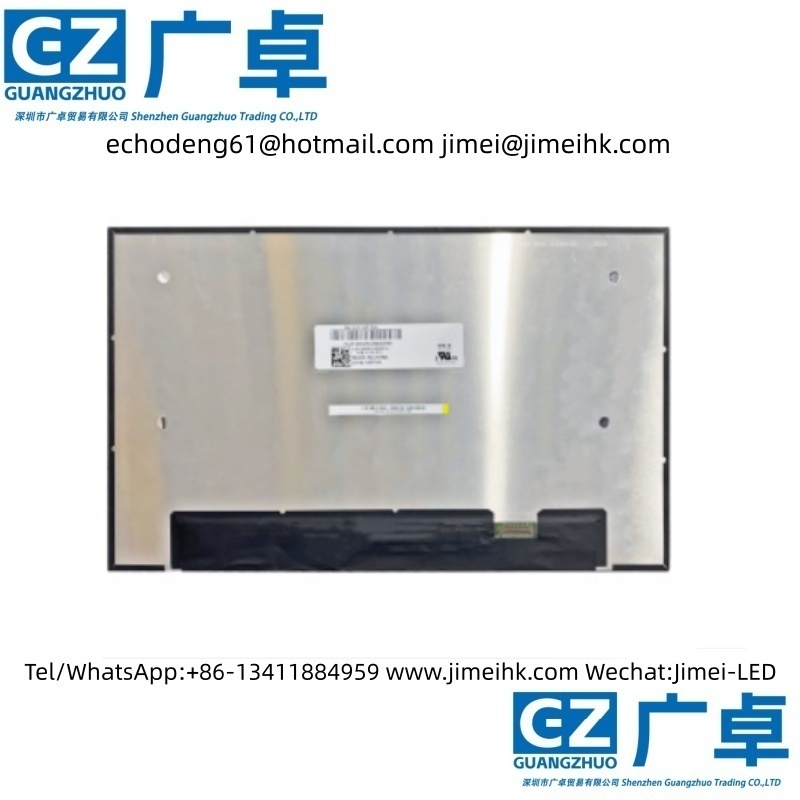

BOE’s NV133FHM-N6L (Product Code: BOE093A) is a 13.3-inch LCD module product utilizing a-Si TFT-LCD technology, equipped with WLED backlighting, LED driver backlight drive, and no touch functionality. Its key features include: sRGB, white LED backlight, LED driver integration, flip-chip terminals, matte surface finish, eDP1.4, and PSR2. It operates within a temperature range of 0 ~ 50°C, with a storage temperature range of -20 ~ 60°C and a vibration resistance of 1.5G (14.7 m/s²). This model is suitable for laptop applications.

The NV133FHM-N6L has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripes. Its active display area measures 293.76 × 165.24 mm (width × height), while the overall dimensions are 300.26 (width) × 177.55 (height) × 4.5 (thickness) mm. The surface treatment features anti-glare (Haze 25%) and hard coating (3H). The net weight is 220 g (maximum). The appearance adopts a slim panel design (with PCBA bending, thickness ≤ 3.0 mm).

For backlighting, this product uses a side-lit light source with 9S6P white LED (WLED) illumination. The LED lifespan is rated at 15,000 hours and includes an LED driver. The NV133FHM-N6L utilizes an eDP (2 Lanes) signal interface with a total of 30 pins connected via a terminal. The typical panel driving voltage is 3.3V. Its typical vertical refresh rate (Fv) is 60Hz.
