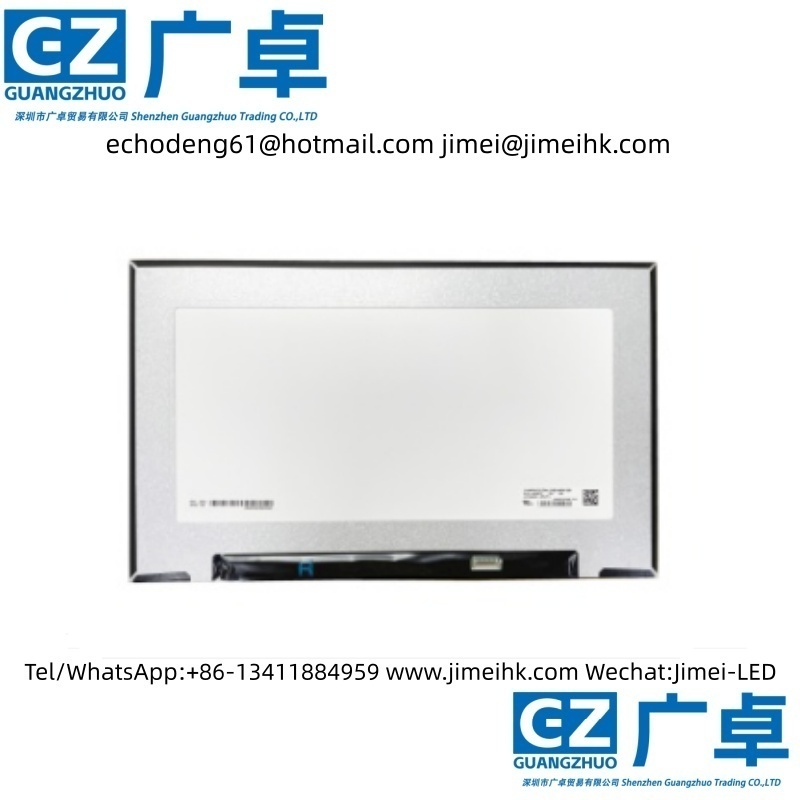

The LP156WFE-SPF1 (also known as LP156WFE (SP) (F1)) launched by LG Display is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, LED driver backlight driver, and touch free. Its typical features are summarized as follows: white LED backlight, including LED driver, and inverted terminals. Its working temperature is 0-50 ° C and storage temperature is -20~60 ° C. This model is suitable for use in laptops and industry.

The LP156WFE-SPF1 display has a resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripe configuration. Its active display area measures 344.16 × 193.59 mm (width × height), and it features a slim screen design (with PCBA bending, thickness ≤ 3.0 mm).

For backlighting, this product uses a WLED (white LED) side-lit light source with a lifespan of 15,000 hours, including the LED driver.

The LP156WFE-SPF1 adopts an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 30 pins, connected via a terminal. The panel driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz.
