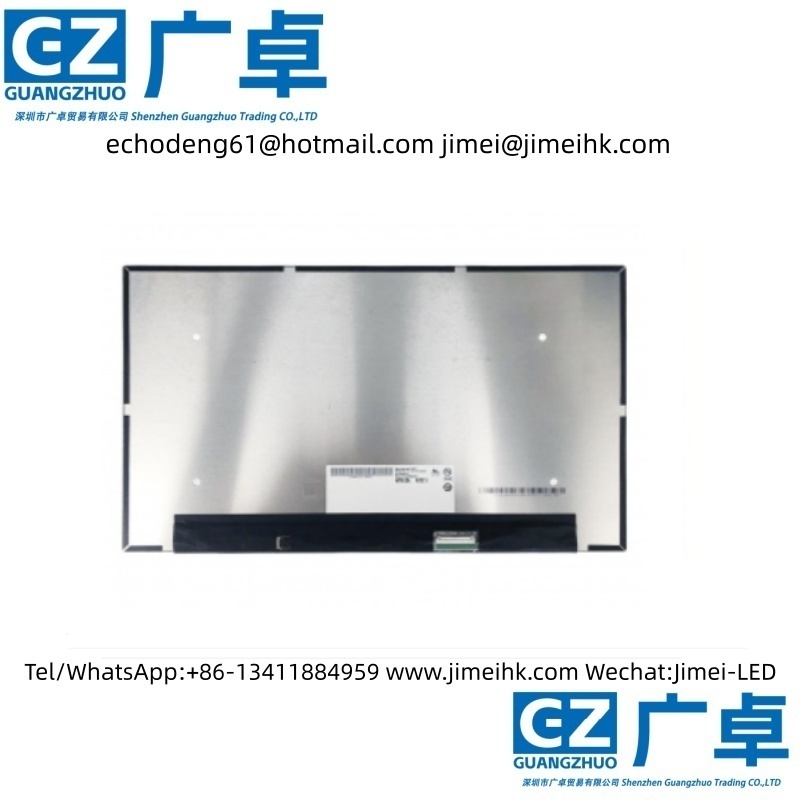

The B156HAK02.2 HW0A (product code: BOE22ED) launched by AU is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight and includes LED driver backlight driver, On-Cell Touch。 Summarizing its typical features are: touch screen, white LED backlight, LED driver included, inverted terminals, matte surface, eDP1.2. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.5G (14.7 m/s ²). This model is suitable for use in laptops.

B156HAK02.2 HW0A has a display resolution of 1920(RGB)×1080 (FHD), with an aspect ratio of 16:9 (width:height). The pixels are arranged in vertical RGB stripe configuration. Its active display area measures 344.16 × 193.59 mm (width × height), while the overall dimensions are 350.66 mm (width) × 205.24 mm (height) × 5.6 mm (thickness). The surface treatment is anti-glare, and the net weight of the product is 380 g (maximum).

In terms of backlighting, this product uses WLED (White LED) edge-lit light source with a lifespan of 15,000 hours, including LED driver. B156HAK02.2 HW0A features an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 40 pins, connected via a terminal. The panel driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60 Hz.
