The LP156WFD-SPH2 (alias: LP156WFD (SP) (H2)) (product code: LGD0684) launched by LG Display is a 15.6-inch LCD module product using a-Si TFT-LCD technology. It is equipped with WLED backlight, including LED driver backlight driver, In-Cell Touch。 Equipped with touch screen, white LED backlight, LED driver, inverted terminals, matte surface, eDP1.2, sDRRS, SSC. Its working temperature is 0-50 ° C, storage temperature is -20~60 ° C, and vibration resistance is 1.0G (9.8 m/s ²). This model is suitable for laptops and industrial applications

The LP156WFD-SPH2 has a display resolution of 1920 (RGB) × 1080 (FHD), with an aspect ratio of 16:9 (width:height), and features RGB vertical stripe pixel arrangement. Its active display area measures 344.16 × 193.59 mm (width × height), while the overall dimensions are 350.66 (width) × 207.29 (height) × 5.4 (thickness) mm. The surface treatment is anti-glare, and the net weight of the product is up to 380 g. It adopts a slim screen design (with PCBA bending, thickness ≤ 3.0 mm).

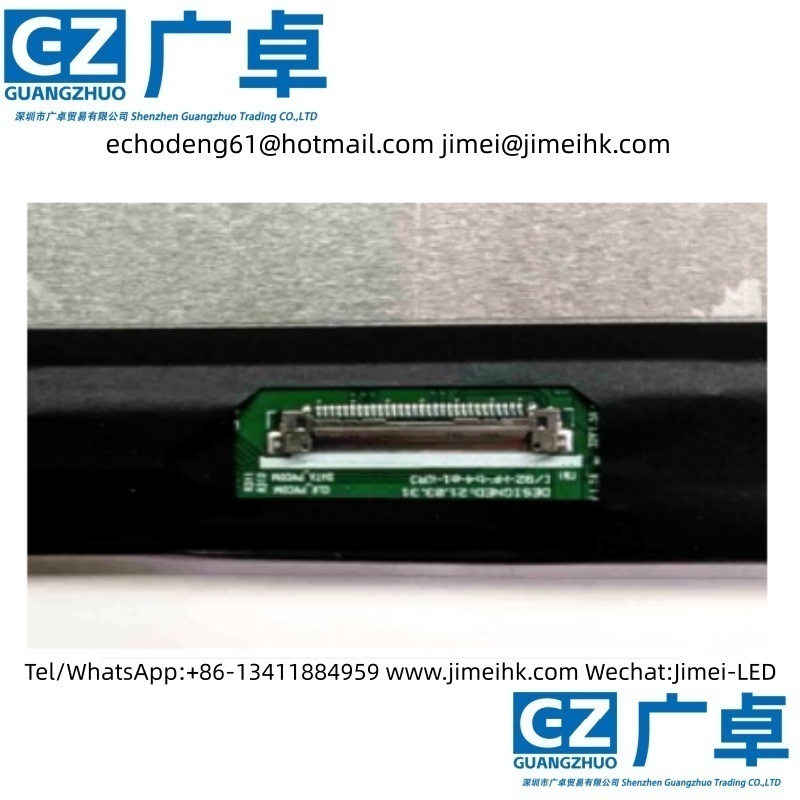

For backlighting, this product uses WLED (white light-emitting diode) edge-lit illumination, with a typical lifespan of 15,000 hours, including an LED driver. The LP156WFD-SPH2 supports an eDP (Embedded DisplayPort) signal interface with 2 lanes, totaling 40 pins, and connects via a terminal. The driving voltage for the panel is 3.3V (typical). Its typical vertical refresh rate Fv is 60 Hz.
