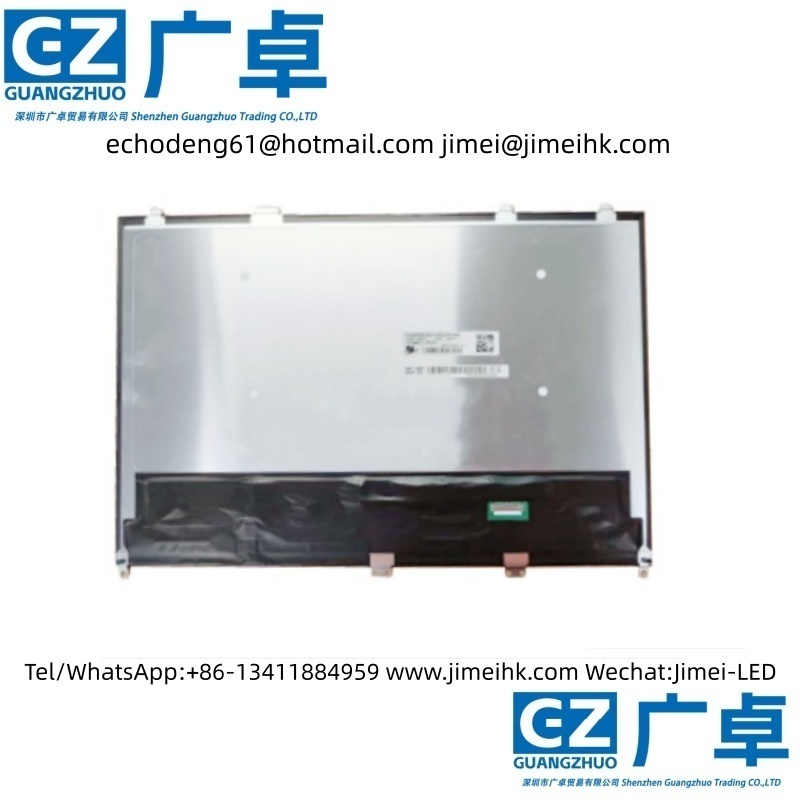

LP140WQ1-SPA1 (alias: LP140WQ1 (SP) (A1)) is a 14.0-inch a-Si TFT-LCD LCD module product launched by LG Display. It is equipped with WLED backlight, LED driver backlight driver, and touch free. This product operates at a temperature range of 0~50 ° C and has a storage temperature range of -20~60 ° C. It can be summarized as follows: white LED backlight with LED driver, 500nit/sRGB 95%/1.65mm/2.2t/1200:1. Based on its features, recommend this model for use in laptops and other products

The LP140WQ1-SPA1 has a display resolution of 2560 (RGB) × 1600 (WQXGA), with an aspect ratio of 16:10 (width:height). The pixels are arranged in vertical RGB stripes, and the pixel density calculated by Panelook is 215 PPI. Its display area measures 301.824 (width) × 188.64 (height) mm.

In terms of backlighting, this product uses WLED (white light-emitting diode) edge-lit illumination, with a light source lifespan of 15,000 hours, including the LED driver. The LP140WQ1-SPA1 features an eDP (2 Lanes) signal interface and uses a terminal connection. The driving voltage for the panel is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz.
